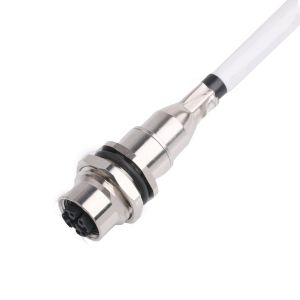

IP67 Waterproof 8-Pin Circular Connector SA812/S8S with CAT5e Cable
CAT5e Cable
The CAT5e (Category 5 Enhanced) Ethernet Cable is a
high-performance networking solution designed to support fast and
stable data communication. With up to 100 MHz bandwidth and support
for Gigabit Ethernet at short distances, this cable is ideal for a
wide range of applications, including surveillance systems, data
centers, and industrial environments.
| Attribute | Description |
|---|
| Cable Type | CAT5e (Category 5 Enhanced) |
| Standards Compliance | ANSI/TIA-568-C.2, ISO/IEC 11801 |
| Transmission Rate | Up to 100 Mbps (Fast Ethernet), supports up to 1 Gbps (Gigabit
Ethernet) at shorter distances |
| Bandwidth | 100 MHz |
| Conductor Material | Solid or Stranded Bare Copper (preferred), some variants use CCA
(Copper Clad Aluminum) |
| Conductor Size | 24 AWG |
| Shielding Type | UTP (Unshielded Twisted Pair), optional STP/FTP available |
| Insulation Material | High-Density Polyethylene (HDPE) |
| Jacket Material | PVC or LSZH (Low Smoke Zero Halogen, optional) |
| Outer Diameter | ~5.0 mm to 6.0 mm (depending on type and shielding) |
| Cable Color | Customizable (standard: blue, black, gray) |
| Number of Pairs | 4 twisted pairs |
| Operating Temperature | -20°C to +75°C |
| Flame Rating | CM / CMR / CMP (depending on jacket type) |
| Max Pull Tension | ~25 lbs (110 N) |
| Applications | Ethernet networking, IP cameras, VoIP, data transmission, patch
cables, and more |
Key Features
- IP67 Waterproof & Dustproof
Suitable for outdoor environments and demanding industrial
conditions.
- Secure Screw Locking Mechanism
Ensures firm and vibration-resistant connection.
- Integrated CAT5e Ethernet Cable
Supports 10/100 Mbps data transmission, ideal for PoE-enabled
systems.
Gold-plated contacts and shielded cable for stable signal
transmission.
- Wide Operating Temperature
Performs in extreme environments: -40°C to +85°C.
Applications
- Surveillance camera systems
- Outdoor security networks
- Traffic monitoring and smart city installations
- Industrial automation and control systems
- Marine and transport electronics
Q1. Is it a factory?
A:Yes,we have more than 16 years of design and manufacturring
experience!
Q2. Is there any certification?
A:Yes,there are IS09001,ISO14001,TS16949,ISO13485,UL CERIFIED.
Q3. What is our specialty?
A:We can design products on the application.
Q4. Do you accept OEM/ODM orders?
A: Yes, we accept OEM/ODM orders. For oem orders, moq is 100pcs.
For ODM orders, moq
1000PCs. Mould fee will be charged according to design.
Q5. How long will it need for completing an order?
A: For small order and products in stock, it will take less than 3
days for preparation and delive
ry, and shipment time depends on clients' choice, fastest 7 days
and longest 1 month.
For big order, as we need to confirm all things include materiel
preparation, production, this pro
cedure will take 5 to 21 working days according to order quantity,
testing 1 to 3 working days, a
nd finally, packing 1 day, so fastest 7 days and longest 25 days
without shipment.
Q6. As long term clients, what other service we can get?
1. New product will be offered with order, so you can see if it is
potential product in the market a
nd promote it, and you will have the right to resell the product in
your district.
2. Additional fee discount, cheaper price on purchasing products at
smaller quantity.
3. We can offer assist on promotion images, and make images with
clients' logo
Q7. How long is warranty for the cable, and if defective or faulty,
how to protection your benifits?
A: All our cables are sold with 12-36 months warranty, and for big
quantity order, we will offer 0.3%
to 0.5% backup for defective sent with order, so if you order
1000PCs, that means you can get 100
3pcs with backup. If you get faulty more than 5pcs, and less than
0.1%, please contact sales and
offer images, and we will solve your problem in the way of
replacing with new order or refund.
Q8. Do you accept free sample order?
A: Yes, sample order is supported, some samples can be offered free
exclusive of shipment freight.
How to contact us?
send your inquiry details in the below, click "send" now! free
sample and best price are waiting for
you, if you can't find the product in our web, you can also send an
inquiry to us, even if we don't make
it, we will find the same product with good quantity and good
price.
